SmartDCTM Fast Charger

SmartDCTM Fast Charger

Built to maintain >98% uptime* even in the harshest conditions, the SmartDCTM outdoor fast charger sets a new standard for reliability.

plug-icon
Fast charging

Our dependable SmartDCoutdoor fast charging stations let EV drivers charge quickly on the go.

Hardware

Versatile

Choose a 50 kW or 100 kW station to fit a variety of EV charging needs.  Charge up fast when on a long trip or top off your battery while making a quick stop.

Worry-free

Easy to manage

Enhanced charging station owner experience with complete remote management capabilities including software and firmware updates and remote intervention services.

Backed by the FLO network

We offer complete after-sale care (and real peace of mind) with our experienced, friendly North America-based service team, proactive station monitoring, and 24/7 remote diagnostic services.

tail end
plug-icon

Let's get started

Product Inquiries - SmartDC - CA-EN

By clicking Submit, you agree to our terms and conditions and privacy policy.

Schedule a consultation with a FLO Expert today!

One of our experienced sales consultants will provide you with all the knowledge you need to get started with EV charging.

tail end
SmartDC
The FLO SmartDCTM advantage

FLO offers a full range of accessories and services for our SmartDCTM outdoor fast chargers, all available from our North America-based network operations center.

Built to outlast
Rugged design

Trust the SmartDCTM station to work in the harshest weather, thanks to a non-corrosive 3R aluminum enclosure and a unique heating and hybrid cooling system.

Maximized uptime
Maximized uptime

Rely on complete after-sale support with FLO’s Network Operation Center and 24/7 EV driver phone support. And thanks to our North America-based manufacturing and assembly facilities, spare parts are readily available to keep downtime minimal.

Global Management Services
Global Management Services

Your station, your control. Enjoy proactive station monitoring with automatic software and firmware updates, alarms and remote diagnostic services. You can also open or restrict public access, right down to the specific driver.

Commissioning
Seamless commissioning

Expect comprehensive onboarding and commissioning support from FLO’s stellar onboarding team to bring your stations online quickly

Rebates and incentives
Rebates and incentives

With rebates, subsidies, and tax credits available from federal/municipal governments and utility companies, installing your EV charging infrastructure has become far more affordable.

SmartDCTM Fast Chargers

Compare SmartDCTM fast charging stations

SmartDCTM 50 kW

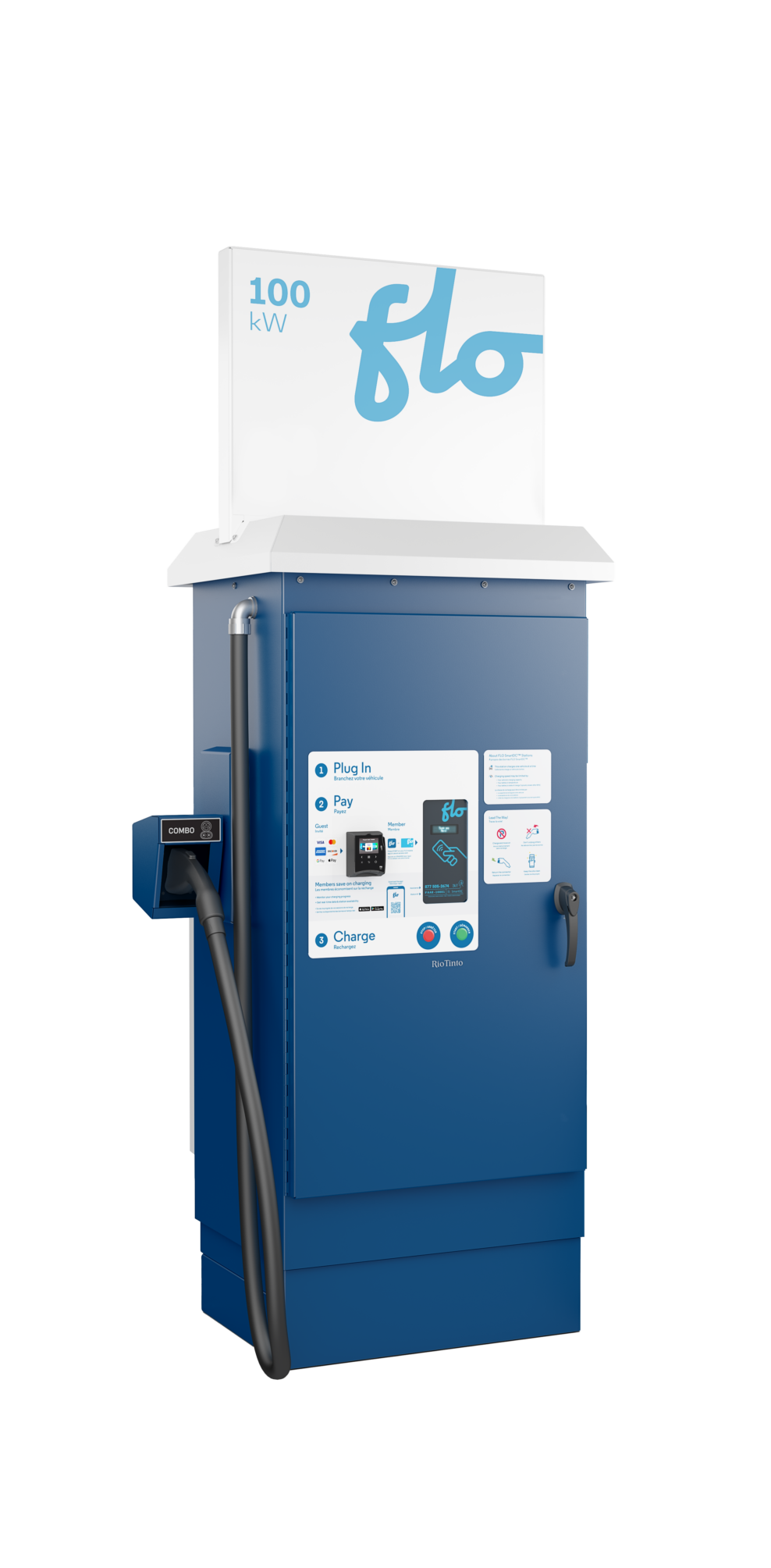

SmartDCTM 100 kW

Features

SAE Combo (CCS1) and CHAdeMO connectors
Credit card reader: Tap, swipe, insert
NFC: Apple Pay, Google Pay
Payment options: RFID card and/or mobile app authentication and payment
Session billing options: By time, or by kWh (where accepted)
Casing aluminum Type 3R enclosure
Operating temperature -40 °F to 122 °F (-40 °C to 50 °C)
Networking: Cellular – 4G (LTE), HSPA+
OCPP1.6J
65 A @ 480 VAC
Maximum input current
130 A @ 480 VAC
54 kW
Maximum input power
108 kW
20ft/6.1m
Twisted steel premium cable
12ft/3.7m
Cable management system (optional)
ENERGY STAR certified
plug-icon

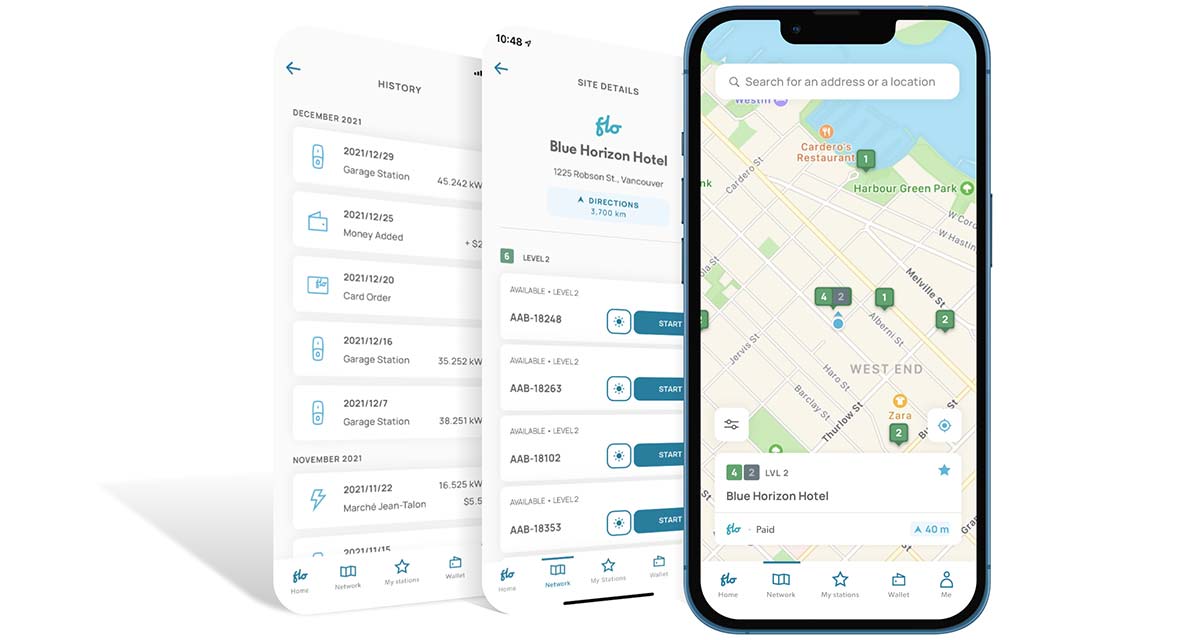

Stay connected with the FLO app

Get instant access to North America’s leading EV charging network right from your iOS or Android device.

home
FLO app
tail end
https://www.flo.com/en-ca/wp-content/uploads/sites/2/2023/01/Image-1_1-6.jpg

Paul MacLatchy

Environment Director, City of Kingston, Ontario, Canada

quote
quote

“ You only get one chance to be an early adopter with something like this, so there was a ‘time is of the essence’ element to electric vehicle technology.

The deployment of these networked charging stations was very well aligned with the City of Kingston’s mantra of innovation and our strategic commitment to climate leadership.”

quote
quote

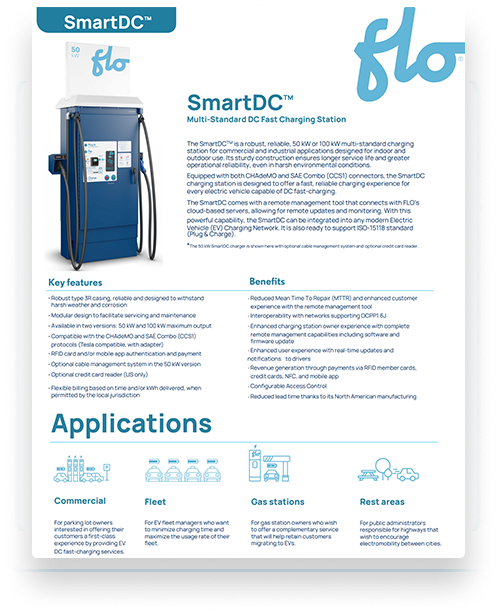

Technical specifications
Physical components
  • Aluminum Type 3R enclosure
  • SAE Combo (CCS1) and CHAdeMO connectors
  • Credit card reader: tap, insert, swipe
  • NFC (Google Pay, Apple Pay)
  • RFID card reader: Fitted standard. Supports ISO 14443 A/B, ISO 15693

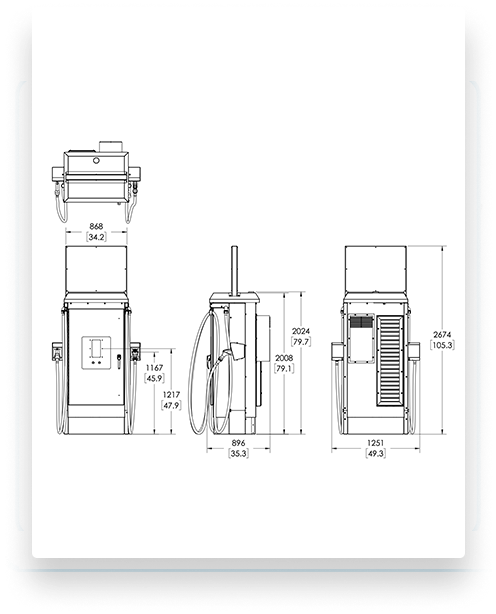

  • Dimensions: 79.7″ x 49.25″ x 32.8″ (2,024 mm x 1,251 mm x 833 mm)
  • Height with top sign installed 105.28″ (2,674 mm)
  • Dimensions: customizable branding panel (H x W): 10.31″ x 16.14″ (25.5 cm x 40.64 cm)
  • Weight (50 kW model) 560 lbs (255 kg)
  • Weight (50 kW model) with cable management system 675 lbs (300 kg)
  • Weight (100 kW model) 675 lbs (300 kg)
  • Cable (50 kW model) twisted steel (20ft/6.1m)
  • Cable (100 kW model) twisted steel (12’/3.7m)
Electrical specifications
  • Maximum input current (50 kW model): 65A
  • Maximum input current (100 kW model): 130A
  • Maximum input power (50 kW model): 54kVA @ 480 VAC
  • Maximum input power (100 kW model): 108kVA @ 480 VAC
  • Power factor 98% or better
  • Efficiency (at maximum output power) 93% or better
  • Output voltage range: 50 to 500 DC
  • Output current range (50 kW model): 0.5 to 125 ADC
  • Output current range (100 kW model): 0.5 to 200 ADC
Environmental specifications & certifications
  • Operating temperature -40 °F to 122 °F (-40 °C to 50 °C)
  • Storage temperature -40°F to 158°F (-40°C to +70°C)
  • Humidity Up to 95% (non-condensing)
  • cULus: UL 2202, UL 2231-1, UL 2231-2, CSA C22.2 No. 107.1 CSA C22.2 No. 281.1, CSA C22.2 No. 281.2, FCC part 15 Class A ICES-3 (A)
  • Networking: Cellular – 4G (LTE), HSPA+
  • OCPP1.6J
  • ENERGY STAR certified
