The versatile, reliable CoRe+TM Series provides fast charging just about anywhere: a workplace, a multi-residential unit, or electrifying a fleet.
Built to Last
The CoRe+TM Series Level 2 charger perseveres even in the most extreme weather conditions.
Flexible Installation Options

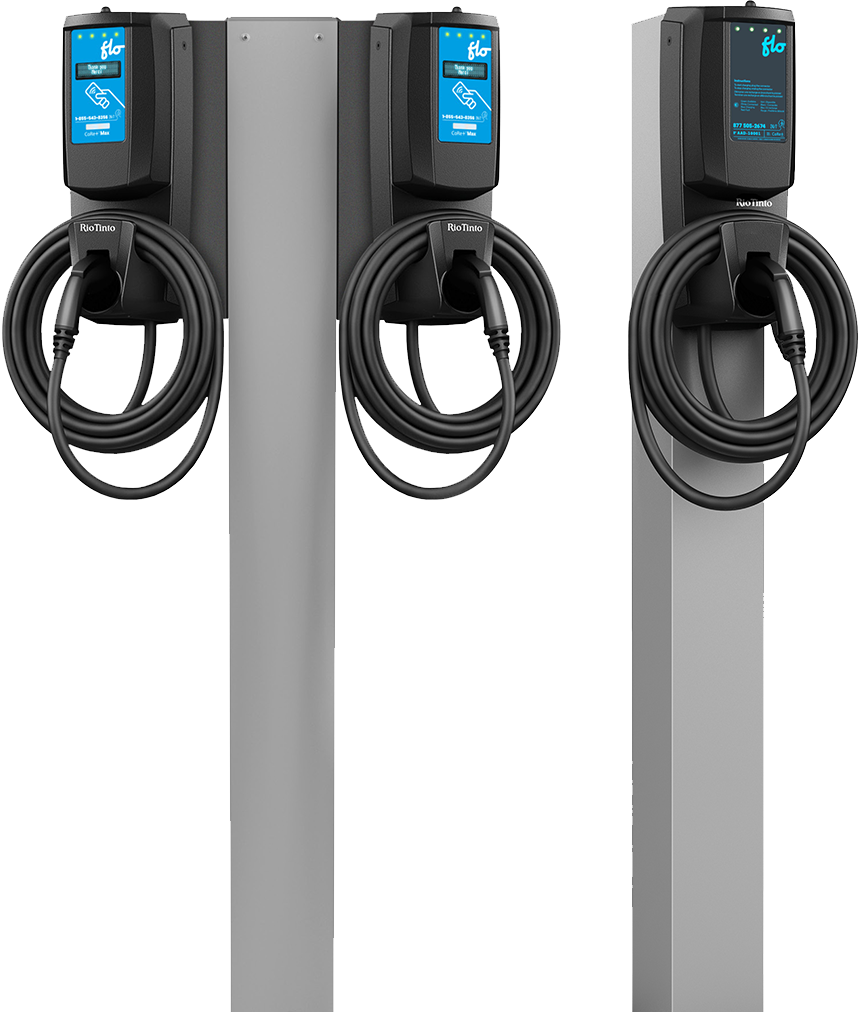

The CoRe+TM offers a choice of installations to suit your location: wall-mount or pedestal mounts, single or double stations, back-to-back, and side-by-side.
It just works
FLO’s >98% uptime* target means the CoRe+TM charger works when you need to get back on the road.
The FLO EV charger advantage
Here’s what makes FLO a leader in EV charging across North America:
Convenient cable management
Keep your station operable and safe from tripping hazards. Our EV charging stations offer twisted steel cable, eliminating tearing, and a unique counterweight system for smooth retraction.
Our CoRe+TM pedestals are also certified to be junction boxes. This reduces the cost of installing additional pedestal-mounted CoRe+TM chargers on a single branch circuit.
Backed by FLO
Rest easy with complete after-sale support from FLO’s Network Operation Center and 24/7 EV driver phone support. FLO’s manufacturing and assembly are in North America, giving you faster access to spare parts, which reduces station downtime.
FLO stands behind our craftsmanship with one of the most extensive warranties in the industry.
Global Management Services
Your station, your control. Enjoy proactive station monitoring with automatic software and firmware updates, alarms and remote diagnostic services. You can also open or restrict public access, right down to the specific driver.
Compare CoRe+TM L2 Charging Stations
Aluminum enclosure (type 4X)
Aluminum enclosure (type 3R)
SAE J1772TM connector
Integrated cable & pistol holster
Input Power 208-240V @60 Hz
Integrated GFCI20 mA
Operating temperature -40°C to +50°C (-40 °F to 122 °F)
Customizable signage panel
Communication interface: ZigBee meshed network
Networking Cellular – 4G LTE
ADA Compliant (US only)
ENERGY Star Certified
1.2 kW to 7.2 kW
1.2 kW to 19.2 kW
Optional Premium Cable
6A - 30A
PowerSharingTM output current
Make the most of available power
FLO’s patented PowerSharingTM technology enables multiple charging stations to share available power. Sites that feature multiple charging stations can be configured for PowerSharingTM at the circuit breaker level. That’s a real convenience when a dedicated circuit isn’t available for each charging station.
Aluminum Type 4x enclosure (CoRe+TM model)
Aluminum Type 3R enclosure (CoRe+ MAXTM model)
SAE J1772 connector
RFID card reader: ISO 14443 A/B, ISO 15693, NFC
Customizable signage panel: (H x W): 30″ x 4.72″
Cable: 21’ / 6.4 m (standard), 25’/7.62 m (optional)
