CoRe+TM Series

Get back on the road faster with the quickest Level 2 EV charging station.

plug-icon

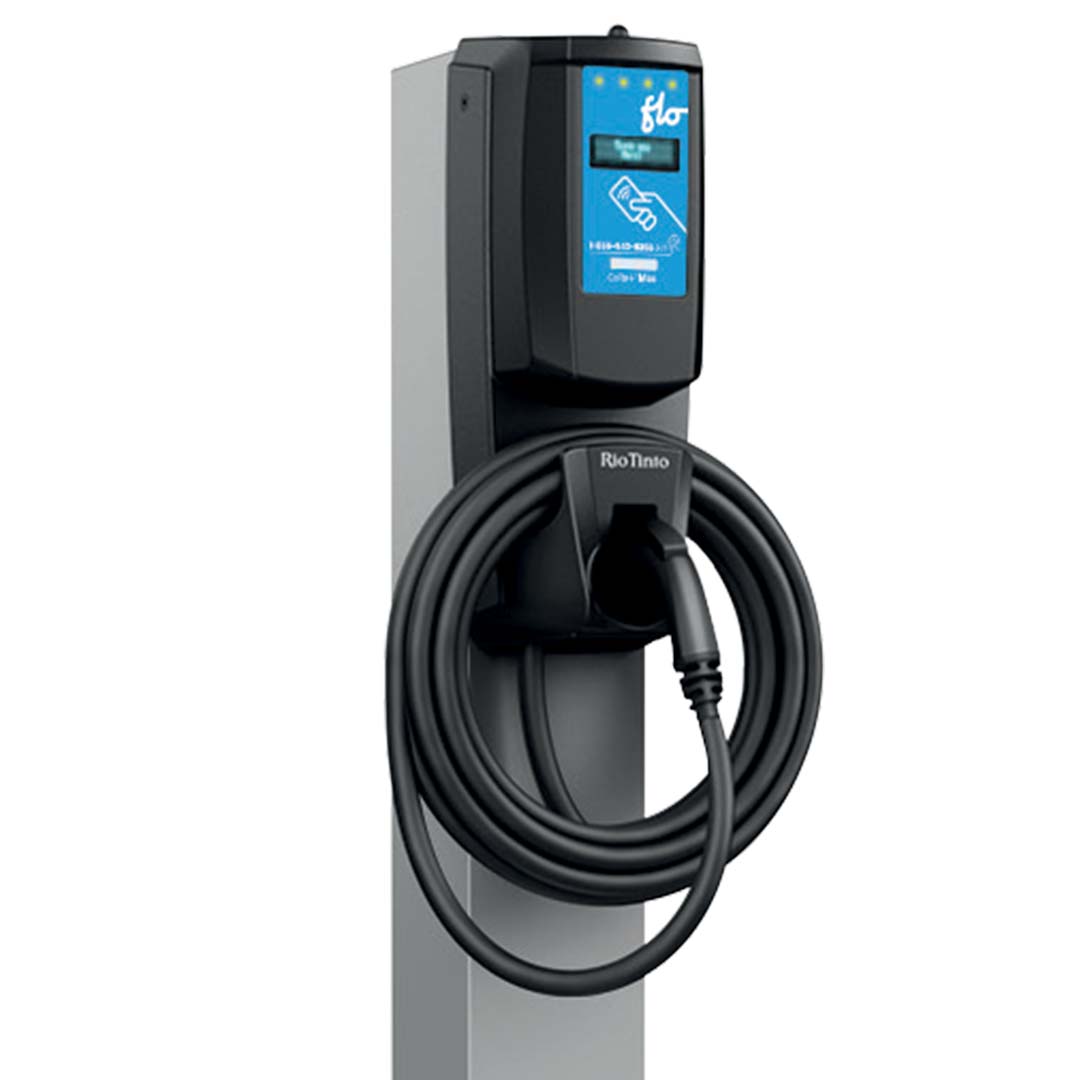

CoRe+TM Series

The versatile, reliable CoRe+TM Series provides fast charging just about anywhere: a workplace, a multi-residential unit, or electrifying a fleet.

Built to Last

The CoRe+TM Series Level 2 charger perseveres even in the most extreme weather conditions.

Flexible Installation Options

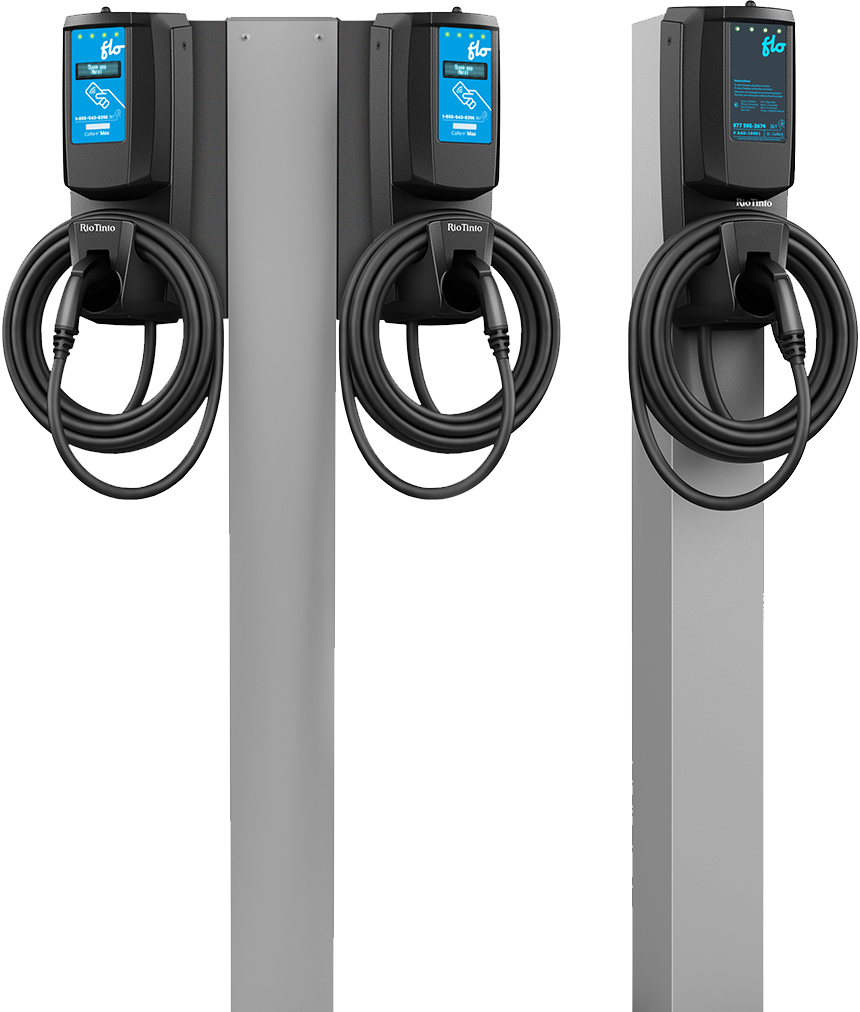

The CoRe+TM offers a choice of installations to suit your location: wall-mount or pedestal mounts, single or double stations, back-to-back, and side-by-side.

Hardware

It just works

FLO’s >98% uptime* target means the CoRe+TM charger works when you need to get back on the road.

tail end
The FLO EV charger advantage

Here’s what makes FLO a leader in EV charging across North America:

Convenient cable management
Convenient cable management

Keep your station operable and safe from tripping hazards. Our EV charging stations offer twisted steel cable, eliminating tearing, and a unique counterweight system for smooth retraction.

Multi-function pedestals
Multi-function pedestals

Our CoRe+TM pedestals are also certified to be junction boxes. This reduces the cost of installing additional pedestal-mounted CoRe+TM chargers on a single branch circuit.

Superior mobile experience
Backed by FLO

Rest easy with complete after-sale support from FLO’s Network Operation Center and 24/7 EV driver phone support. FLO’s manufacturing and assembly are in North America, giving you faster access to spare parts, which reduces station downtime.

Safe and user-friendly
Extensive Warranty

FLO stands behind our craftsmanship with one of the most extensive warranties in the industry.

Global Management Services

Your station, your control. Enjoy proactive station monitoring with automatic software and firmware updates, alarms and remote diagnostic services. You can also open or restrict public access, right down to the specific driver.

Core+ Series

Compare CoRe+TM L2 Charging Stations

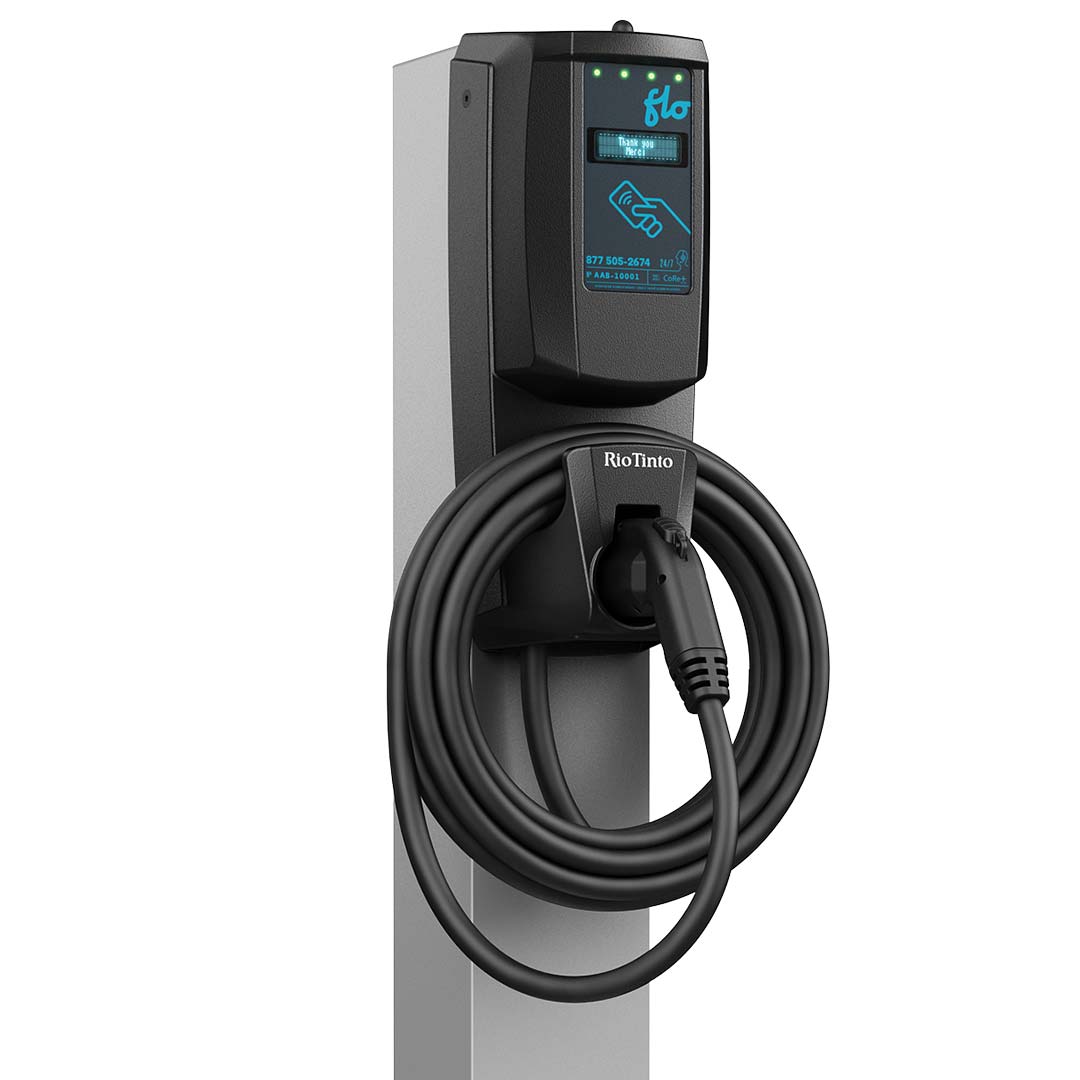

CoRe+MAXTM
CoRe+TM
CoRe+TM

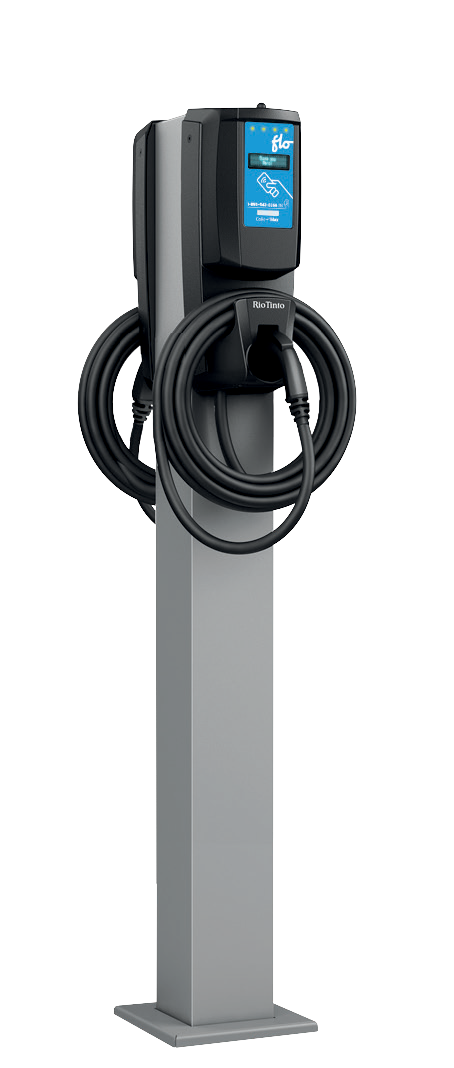

CoRe+ MAXTM

Features

Aluminum enclosure (type 4X)
Enclosure
Aluminum enclosure (type 3R)
SAE J1772TM connector
Integrated cable & pistol holster
Input Power 208-240V @60 Hz
Integrated GFCI20 mA
Operating temperature -40 °F to 122 °F (-40°C to +50°C )
Customizable signage panel
Communication interface: ZigBee meshed network
Networking: Cellular 4G LTE
ADA Compliant
ENERGY Star Certified
1.2 kW to 7.2 kW
Charging Power
1.2 kW to 19.2 kW
21’ / 6.4 m (US only) 25’/7.62 m (optional)
Premium Cable
19’ / 5.8 m (standard) 25’/7.62 m (optional)
6A - 30A
Output current
6A-80A
6A-32A
PowerSharingTM output current
6A-80A
tail-end
Make the most of available power

FLO’s patented PowerSharingTM technology enables multiple charging stations to share available power. Sites that feature multiple charging stations can be configured for PowerSharingTM at the circuit breaker level. That’s a real convenience when a dedicated circuit isn’t available for each charging station.

home
CoRe+TM Series
Technical specifications
Physical components
  • Aluminum Type 4x enclosure (CoRe+TM model)
  • Aluminum Type 3R enclosure (CoRe+ MAXTM model)
  • SAE J1772 connector
  • RFID card reader: ISO 14443 A/B, ISO 15693, NFC
  • Customizable signage panel: (H x W): 30″ x 4.72″
  • Cable: 21’ / 6.4 m (standard), 25’/7.62 m (optional)
  • Weight: Charging station: 21 lbs / 9.53 kg, Pedestal: 32 lbs / 14.5 kg
Electrical & connectivity specifications
  • Standard input power: 30 A @ 208 VAC or 240 VAC for each charging station
  • With PowerSharing: 32 A @ 208 VAC or 240 VAC per set of 4 charging stations (CoRe+TM only)
  • Charging power: 1.2 kW to 7.2 kW (CoRe+TM model only)
  • Charging power: 1.2 kW to 19.2 kW (CoRe+ MAXTM model only)
  • Output current: 6 A to 30 A (CoRe+TM model)
  • Output current: 6 A to 80 A (CoRe+ MAXTM model)
  • Frequency: 60 Hz
  • Integrated GFCI 20 mA, auto reset
  • Communication interface: ZigBee – IEEE 802.15.4 meshed network
  • Cellular:  4G LTE
Environmental specifications & certifications
  • Operating temperature: -40 °F to 122 °F (-40°C to +50°C)
  • Storage temperature: -40 °F to 158 °F (-40°C to +70C)
  • Humidity: Up to 95% (non-condensing)

CoRe+TM Certifications:

  • CSA- C22.2 No. 280
  • CSA C22.2 No 281.1 and 281.2
  • UL 2594
  • UL 2231-1 and 2231-2

CoRe+ MAXTM Certifications:

  • CSA- C22.2 No. 280
  • UL 2594
  • CSA C22.2 No 281.1 and 281.2
  • UL 2231-1 and 2231-2
  • ADA compliant (US only)
Documentation & resources

CoRe+TM & CoRe+ MAXTMSeries User Guide

PDF User Guide 2MB

CoRe+TM 40 A Cascading Kit Installation Guide

PDF 40 A Cascading Kit Installation Guide 379KB

CoRe+TM 150 A Cascading Kit Installation Guide

PDF 150 A Cascading Kit Installation Guide 396KB

CoRe+TM Series Communication Gateway Installation Guide

PDF Communication Gateway Installation Guide 838KB

CoRe+TM & CoRe+ MAXTMAnchor Installation Guide

PDF Anchor Installation Guide 1MB

Core+TM Installation Guide

.

PDF Installation Guide 5MB

CoRe+TM Ordering Guide

PDF Ordering Guide 1MB

Core+TM Spec Sheet

PDF Spec Sheet 1MB

Core+TM User Guide VB

PDF User Guide VB 151KB

Core+TM Cable Management and Pedestal Installation Guide

PDF Cable Management and Pedestal Installation Guide 5MB

Core+TM 3D Cad Model

ZIP 3D Cad Model 47MB

CoRe+ MAXTM Communication Gateway Installation Guide

PDF Communication Gateway Installation Guide 838KB

CoRe+ MAXTM Anchor Installation Guide

PDF Anchor Installation Guide 1MB

CoRe+ MAXTM Cable Replacement Guide

PDF Cable Replacement Guide 2MB

CoRe+ MAXTM Cascading Kit Breaker Locks Installation Guide

PDF Cascading Kit Breaker Locks Installation Guide 8MB

CoRe+ MAXTM User Guide

PDF User Guide 2MB

CoRe+ MAXTM Installation Guide

PDF Installation Guide 2MB

CoRe+ MAXTM Ordering Guide

PDF Ordering Guide 409KB

CoRe+ MAXTM Pedestal and Cable Mgmt

PDF Pedestal and Cable Mgmt 4MB

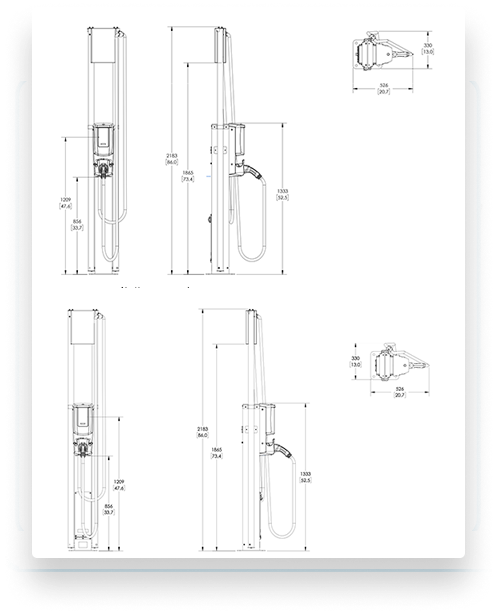

Single CoRe+ MAXTM 3D Cad Model

ZIP 3D Cad Model 83MB

Dual CoRe+ MAXTM 3D Cad Model

ZIP 3D Cad Model 123MB

CoRe+ MAXTM Spec Sheet

PDF Spec Sheet 1MB

CoRe+ MAXTM Warranty

PDF Warranty 99KB
