Home Charge
Home is where your charging station is.
Reliability Redefined
Raising the bar with a 5-year warranty, the FLO Home Level 2 chargers are built to outlast, effortlessly enduring any climate with a durable Type 4X enclosure.
Style Meets Performance
Designed for real life, it seamlessly blends with your lifestyle while delivering robust performance, ensuring a perfect fit for your home and compatibility with any EV or plug-in hybrid (PHEV).
Charge Smarter, Not Harder
Maximize savings with our smart charging equipment that allows you to schedule to take advantage of lower utility rates, remotely lock your charger, and stay in the loop with real-time notifications.
Why choose FLO Home EV chargers?
Experience the convenience of fast charging right at your doorstep with Level 2 charging. Most vehicles can be fully charged in under 8 hours, benefiting from a 50-amp current that delivers up to 12kW of power or an 80-amp current that can provide up to 19.2kW, ensuring your vehicle is ready to go when you are.
Built to outlast
Gain ultimate peace of mind with an industry-leading 5-year warranty, supported by high-quality components that last for the long term.
Weather warrior
Braves rain, snow, ice, sea breeze, and dust fearlessly, thanks to its protection by a type 4X enclosure.
Compatible with any EV
Opt for SAEJ1772 or NACS charging connectors and choose your current from 50 amps (power up to 12 kW) to 80 amps (19.2 kW power) that charge most vehicles in less than 8 hours.
Versatility for any home
Ideal for any setting, indoors or outdoors, and compatible with both copper and aluminum wiring. With subtle lighting and branding, it integrates effortlessly into any environment.
Control your charge
Use the FLO app to set schedules to take advantage of lower utility rates, secure your charger from unintended usage, and see real-time charging status at home and on public charging across North America.
Certified and ready for you
Ensures worry-free charging with comprehensive safety certification, heat sensors located in both the NEMA plug* and the connector for potential overheating detection and prevention.
Choose the Level 2 Charger That Is Uniquely You
FLO Residential Chargers
Features
Maximum Power & Current: 12 kW @240V / 50A (adjustable from 6 to 50A)
Maximum Power & Current: 19.2 kW @240V / 80A (adjustable from 6 to 80A)
Type 4X Enclosure: Waterproof, impact and corrosion-resistant industrial-grade thermoplastic
Type 4X Enclosure: Waterproof, impact and corrosion-resistant recyclable aluminum
Flexible design: Detachable cable & connector holder
Hardwire: Compatible with copper & aluminum wiring
NEMA 14-50 Plug: Embedded heat sensor & 24 inch cord
Daisy-chain: 2 or more chargers on the same circuit
Compatible with any EV: J1772 or NACS connectors with embedded heat sensors
Flexible, commercial-grade cable: 7.62m (25 ft)
FLO App Smart Features: Restrict Access, Create schedules, charging history, real-time charging status and notifications
Warranty: Industry-leading 5-year
Backed by 15 years of EV charging experience
Control Your Home EV Charger & More
At home: Create schedules to take advantage of lower utility rates, secure your charging equipment, and stay in the loop with real-time notifications.
Public charging: Use the same app for thousands of chargers with 98% uptime across North America.
 |
 |
Installation Made Easy
Get an instant quote on installation costs with qualified EV charger installers in your area through Qmerit.

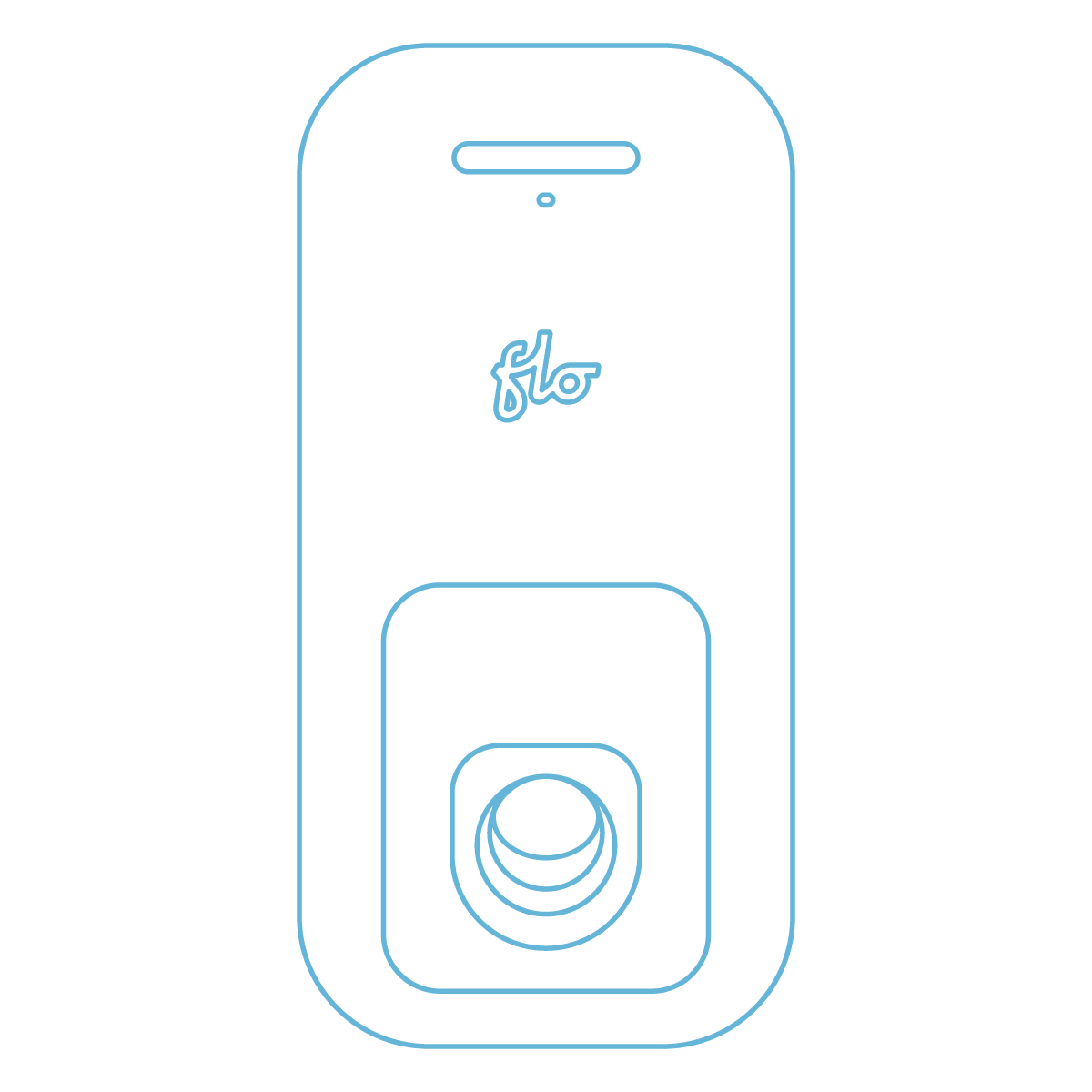

Charged & Ready: Take a Tour of the FLO Home
Explore the product to uncover meticulously crafted design features that elevate your charging experience across any EV from the Nissan Leaf to Tesla Model X.
Technical Specifications
Physical components
- Enclosure:
- FLO Home X3: Type 4X, Industrial-grade thermoplastic
- FLO Home X6 & X8: Type 4X, Recyclable Aluminum
- Status Indicator: Charging status LED, connectivity status LED

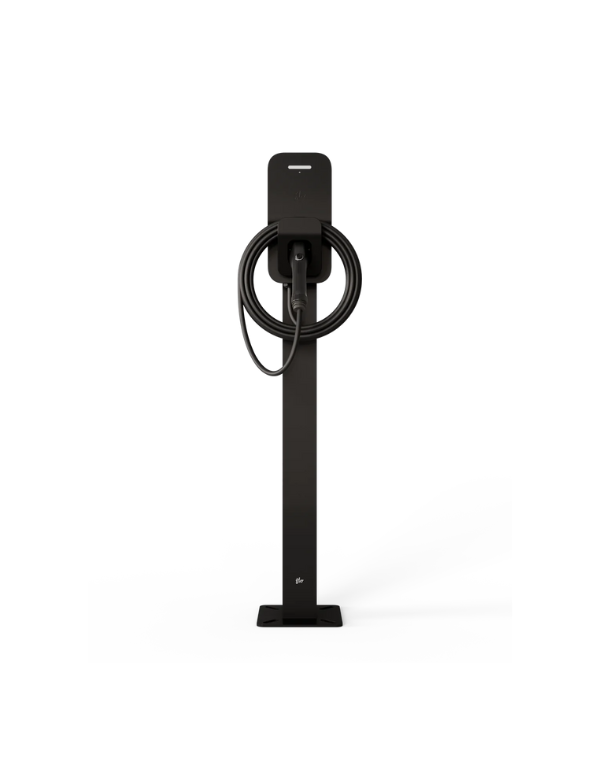

- Mounting: Wall or pedestal. Wall bracket included.
- Cable & Connector Holster:
- FLO Home X3: Fixed
- FLO Home X6 & X8: Detachable
- Operating Temperature: -40 °C to 50 °C (-40 °F to 122 °F)
- Charging Connector:
- FLO Home X3 & X6: SAE J1772 or NACS, both designed to withstand 10,000+ charging cycles with embedded heat sensors
- FLO Home X8: SAE J1772 designed to withstand 10,000+ charging cycles with embedded heat sensor
- Charging Cable: 7.62 m (25 ft) commercial grade
- Dimensions
- FLO Home X3: 381 mm x 184 mm x 182.5 mm (15” x 7.25” x 7.188”)
- FLO Home X6 & X8: 409.4 mm x 208.8 mm x 190.25 mm (16.09” x 8.25” x 7.5”)
- Weight
- FLO Home X3
- Hardwired: 5.6 kg (12.5 lbs)
- NEMA 14-50: 6.3 kg (13.6 lbs)
- FLO Home X6
- Hardwired: 7.8 kg (17.5 lbs)
- NEMA 14-50: 8.5 kg (18.6 lbs)
- FLO Home X8
- Hardwired: 10.2 kg (22.5 lbs)
- FLO Home X3
Electrical specifications
- Output current:
- FLO Home X3 & X6: 50 A – adjustable from 6 to 50 A via physical current selector (rotary switch)
- FLO Home X8: 80 A – adjustable from 6 A to 80 A via physical current selector (rotary switch)
- Output power:
- FLO Home X3 & X6: 12 kW
- FLO Home X8: 19.2 kW
- AC Input Voltage: 208 – 240 V @ 60 Hz
- AC Input Connection:
- FLO Home X3 & X6: NEMA 14-50 with embedded heat sensor, hardwired
- FLO Home X8: Hardwired only
- Compatible wiring: Aluminum or copper
- Wire entry options: Bottom or rear
- Security: Integrated GFCI 20mA, 3 reset attempts at 15-minute intervals
- Daisy Chain:
- FLO Home X3: No
- FLO Home X6 & X8: Yes
Smart Capabilities & Communication
- Connection: Wi-Fi 2.4 GHz, Cellular LTE-M*
- FLO App capabilities: Virtual lock mode, remote start & stop, charging schedule, real-time status, charging history, charging notifications
*Cellular connectivity to the FLO network is a feature in development and may not be enabled at the time of purchase. FLO uses cellular connectivity to administer certain over-the-air product updates and to better understand the location and energy usage of its customers. Please read our privacy policy at www.flo.com/privacy-policy to learn about your privacy rights and how we handle personal information.
FLO Home® Product documentation
FLO Home® X3

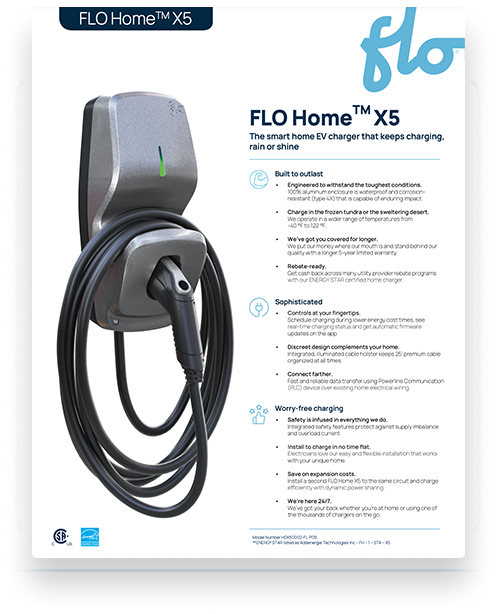

PDF Spec Sheet 250KB PDF Installation Guide 1MB ZIP 3D CAD Model 20MB PDF Warranty 157KB
FLO Home® X6
PDF Spec Sheet 638KB PDF Installation Guide 2MB ZIP 3D CAD Model 20MB PDF Warranty 157KB
